Product Details:

Network TypesRS-485 Modbus RTU/ASCII, Ethernet (Modbus TCP)
Model NumberET-485
ApplicationRS-485 MODBUS/ASCII to Ethernet conversion
Power Supply100 – 265V AC 50/60Hz, 140 – 375V DC, 7 – 24V DC battery (optional)

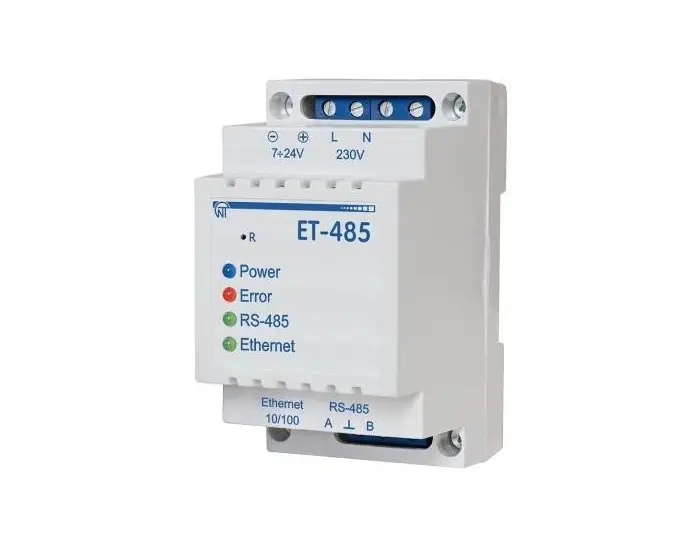

ET-485 is a microcontroller unit. It is designed to exchange data over the Ethernet 10BASE-T and 100BASE-T network using the equipment, which is provided with the RS-485 interface and establishing a Modbus network. The standard network mapping using the RS-485 is provided. The unit fulfills the functions of a ‘Modbus Server’ for switching the Modbus clients to the Ethernet network. It redirects the Modbus requests from the clients to the units in the Modbus network and returns their answers to the clients.

ET-485 has:

  • Flexible addressing within the Ethernet network (overloading MAC-address, static and dynamic IP- address)
  • Access protection over the Ethernet network (password for configuration mode, IP- address filter for setting and switching to the Modbus network)
  • Different data transfer modes for Modbus network (RTU and ASCII with/without odd-even check, wide range of transmission speeds, selectable delays)
  • Free PC software for programming/settings and monitoring


32-bit RISC processor with ARM architecture provides data routing between the Modbus RTU/ASCII (RS-485) network and Ethernet (10base-T/100base-T) network. The operating speed and availability of channels for direct access to the memory allows processing the high-speed data flow. Indicators provide information on the connection status and data transfer over the Modbus and Ethernet networks. The “Reset” button allows of restart the unit, without switching it off the mains, or do a factory reset.

The unit has non-volatile memory to save settings. Every unit is provided with a globally unique MAC address (during the production) and can be connected to local networks with a protected access to Internet.

Additional Information:

  • Item Code: ET-485
  • Port of Dispatch: New Delhi, India

Main specifications:

Operating supply voltage, VAC230

Voltage to maintain normal operation, V

– alternating current

– direct current

-voltage of DC backup power (optional)

100 – 265

140 – 375

7 – 24

Supply frequency, Hz47 – 63
Data Exchange Interface over the Ethernet network10BASE-T/100BASE-T (twisted pair)
Supported Ethernet protocolsARP, IP, TCP, Modbus TCP, HTTP
Maximum number of connections over the Modbus TCP protocol11
Integrated serversModbus-server, HTTP-server
Data Exchange Interface over the Modbus networkRS-485
Modbus network exchange modesDriving (Master) / Driven (Slave)
Supported Modbus protocolsModbus RTU, Modbus ASCII
RS-485 driver maximum output voltage, V3.3
RS-485 output current of short circuit driver (limiting), mA250
RS-485 receiver input current, mA, no more than0.125
Integrated terminal resistance, Ohm300

Recommend number of connected units within the Modbus network:

  • when receivers input current of RS-485 bus is doesn’t more 0.125 mA
  • when receivers input current of RS-485 bus is doesn’t more 1mA

256, not more

32, not more

Readiness time upon switching the unit to the mains, sec, not more than1
Rower consumption, VA, not more than1.2
Weight, kg, at most0.200

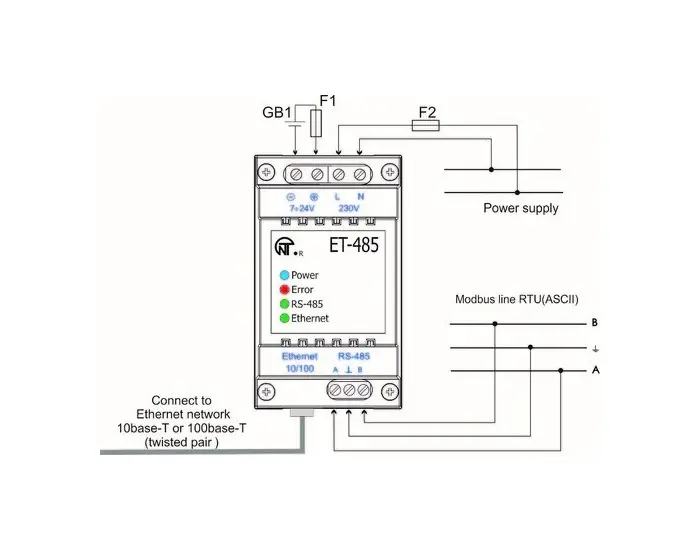

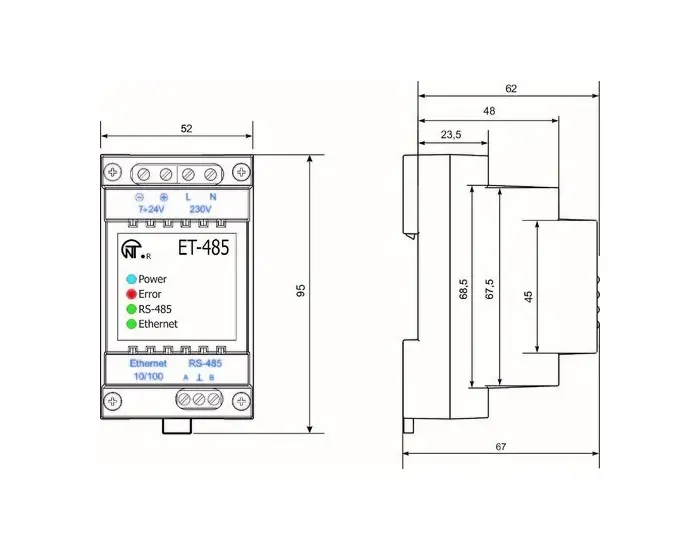

Dimensions, mm95 х 52 х 67
Unit purposeCommunication
Nominal operation conditionContinuous
Cross section of terminals connection wires, mm²0.5 – 2.5
Terminal screws, N*m0.4
Level of unit protection:IP20
Protection class against electrical shockII
Permissible pollution densityII
Overvoltage categoryII
Rated insulation voltage, V450
Rated impulse withstand voltage, kV2.5
Operating positionArbitrary
Pollutants in the amount, which is not to exceed the maximum permissible concentrationNone

Operating and storage conditions:

Operating temperature, °Сfrom minus 35 to +55
Storage temperature, °Сfrom minus 50 to +60
Atmospheric pressure, kPafrom 84 to 106.7
Relative air humidity (at 25°С) non-condensing, %from 30 to 90

ET-485 meets the following requirements:
IEC 60947-1:2004, ІDТ; ІEC 60947-6-2:1992, ІDT; CISPR 11:2004, IDT; IEC 61000-4-2:2001, IDT.
