DRY TRANSFORMER TEMPERATURE CONTROLLER TR-100
Product Details:
| Voltage | 24 to 260V AC-DC |
| Temperature Range | minus 40 to plus 240 deg C |
| Controller Type | Safety Limit Controller, On/Off Control |
| Input Sensor | RTD |
| Brand | NOVATEK ELECTRO |
| Power | 24 VDC, 100 to 240 VAC |
| Model Number | TR-100 |
| Material | Flame retardant plastic |
| Type | Digital with RS485 Modbus RTU/ASCII communication |
| Mounting | Standard DIN rail |
| Size | 139 x 90 x 63 mm |
| Display Type | Digital LED |
| Application | Protection of Dry type Transformers and HV Motors |

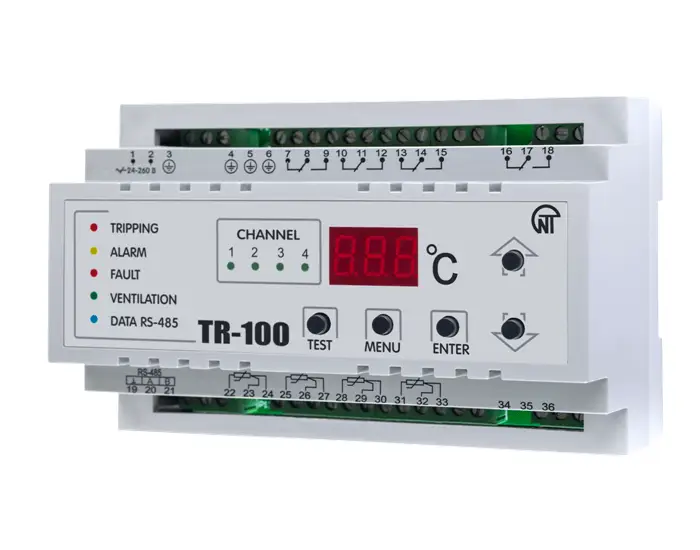

TR-100 is used to measure and control device temperature via four RTD sensors connected in a two or three-wire circuit, with subsequent indication of the temperature on the display and alarm signaling in case of any parameters being outside the set range.
It can be used to protect:
- Engines and generators
- Three phase dry transformers with additional core or ambient temperature control
TR-100 can use any voltage between 24 and 225V AC, regardless of the polarity.
The following thermal sensors can be used by TR-100:
- PT100 – platinum sensor with nominal resistance of 100 Ohm at 0
- PT1000 – platinum sensor with nominal resistance of 1000 Ohm at 0
- KTY83 – silicon sensor with nominal resistance of 1000 Ohm at 25
- KTY84 – silicon sensor with nominal resistance of 1000 Ohm at 100
- PTC (1, 3, 6 serial connection), cold resistance of 20-250 Ohm
Temperature Range: -40 to +240 deg C
Display Size: LED 3 x 7 Segment
Controller Type: On/Off Control
Input Sensor: RTD
Additional Information:
- Item Code: TR-100
- Port of Dispatch: New Delhi, India
TECHNICAL CHARACTERISTICS:
| Supply power, V | 24 – 260 AC/DC |
| Recommended fuse for equipment protection, А | 1-2 |
| Thermal transducers | PT100, PT1000, KTY83, KTY84, PTC |
| Connectable transducers, pcs. | 1 – 4* |
| Method of hardwire | 2 / 3 wired |
| Wire length of sensor ( depending on method of hardwire), m: | 2 wired up to 5 3 wired up to100 |
| Amount of output relay, pcs. | 4 |
| Date-hold time, years, not less then | 15 |
| Temperature measurement error, °С | ± 3 |
| Temperature measurement range, °С | from – 40 to +240 |
| Output relay test | Yes |
| Indication test | Yes |
| RS-485 MODBUS RTU | To order |
| Time measurement, sec. | £ 2 |
Degree of protection: – body – terminal block | ІР30 ІР20 |
| Climatic execution | Y3.1 |
| Power input (power load), VA, no more than | 4,0 |
| Weight, kg, no more then | 0,180 |
| Dimensions, mm | 90 х 139 х 63 |
| Operation temperature range, °С | from -40 to +55 |
| Storage temperature, °С | from -50 to +60 |
| Montage to standard 35mm mounting frame | |
| Free position in space | |
| * note – PTC transducers can be connected as serial connection (1, 3, 6 pc.) | |
Characteristic of output contacts:
Cos ф | Max. Current (U~250В) | Max. Power | Max. Voltage.~ | Max. Current (UDC =30В) |
| 1,0 | 10 А | 4000 VA | 440 В | 3 А |
Commutation life of the output contacts: – under 10A 250V AC, times, not less than – under 10А 24V DC, times, not less than | 10 mil. 10 mil. | |||
